BD HorizonTM RY586 Mouse Anti-Human IL-17A

Description

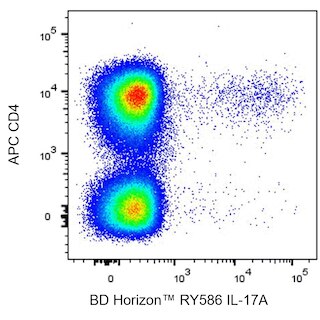

Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software. Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software. Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software. Show More Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software. Show More Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software. Two-color flow cytometric analysis of IL-17A expression in stimulated human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were stimulated for 5 hours with Phorbol 12-Myristate 13-Acetate PMA; Sigma P-8139; 50 ng/ml final concentration and Ionomycin Sigma I-0634; 1 mug/ml final concentration in the presence of BD GolgiStop Protein Transport Inhibitor containing Monensin Cat. No. 554724 . The cells were harvested, washed with BD Pharmingen Stain Buffer FBS Cat. No. 554656 and fixed with BD Cytofix Fixation Buffer Cat. No. 554655 . The cells were then washed and stained in BD Perm/Wash Buffer Cat. No. 554723 with APC Mouse Anti-Human CD4 antibody Cat. No. 555349/561840/561841 and with either BD Horizon RY586 Mouse IgG1 kappa Isotype Control Cat. No. 568097; Left Plot or BD Horizon RY586 Mouse Anti-Human IL-17A antibody Cat. No. 568151/568152; Right Plot . The bivariate pseudocolor density plot showing the correlated expression of IL-17A or Ig Isotype control staining versus CD4 was derived from gated events with the forward and side light-scatter characteristics of intact lymphocytes. Flow cytometry and data analysis were performed using a BD FACSymphony A5 Flow Cytometer System and FlowJo software.
