BD HorizonTM RB780 Mouse Anti-Insulin

Description

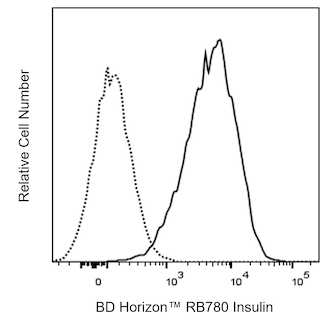

Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific. Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific. Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific. Show More Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific. Show More Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific. Flow cytometric analysis of Insulin expression in Human Insulin-transfected 293F cells and a Mouse insulinoma cell line. Left Plot - Human 293F untransfected dashed line histogram and Insulin-transfected solid line histogram cells were fixed with BD Cytofix Fixation Buffer Cat. No. 554655 and permeabilized with BD Phosflow Perm Buffer III Cat. No. 558050 . The cells were then washed and stained with BD Horizon RB780 Mouse Anti-Insulin antibody Cat. No. 570372/570442; solid line histogram at 1 mug/test. Right Plot - Cells from the Mouse Beta-TC-6 Insulinoma, ATCC CRL-3605 cell line were fixed with BD Cytofix Fixation Buffer and permeabilized with BD Phosflow Perm Buffer III. The cells were washed and stained with either BD Horizon RB780 Mouse IgG1, kappa Isotype Control Cat. No. 568532; dashed line histogram or BD Horizon RB780 Mouse Anti-Insulin antibody solid line histogram at 1 mug/test. The fluorescence histograms were derived from gated events with the forward and side light-scatter characteristics of intact cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet is not lot specific.
